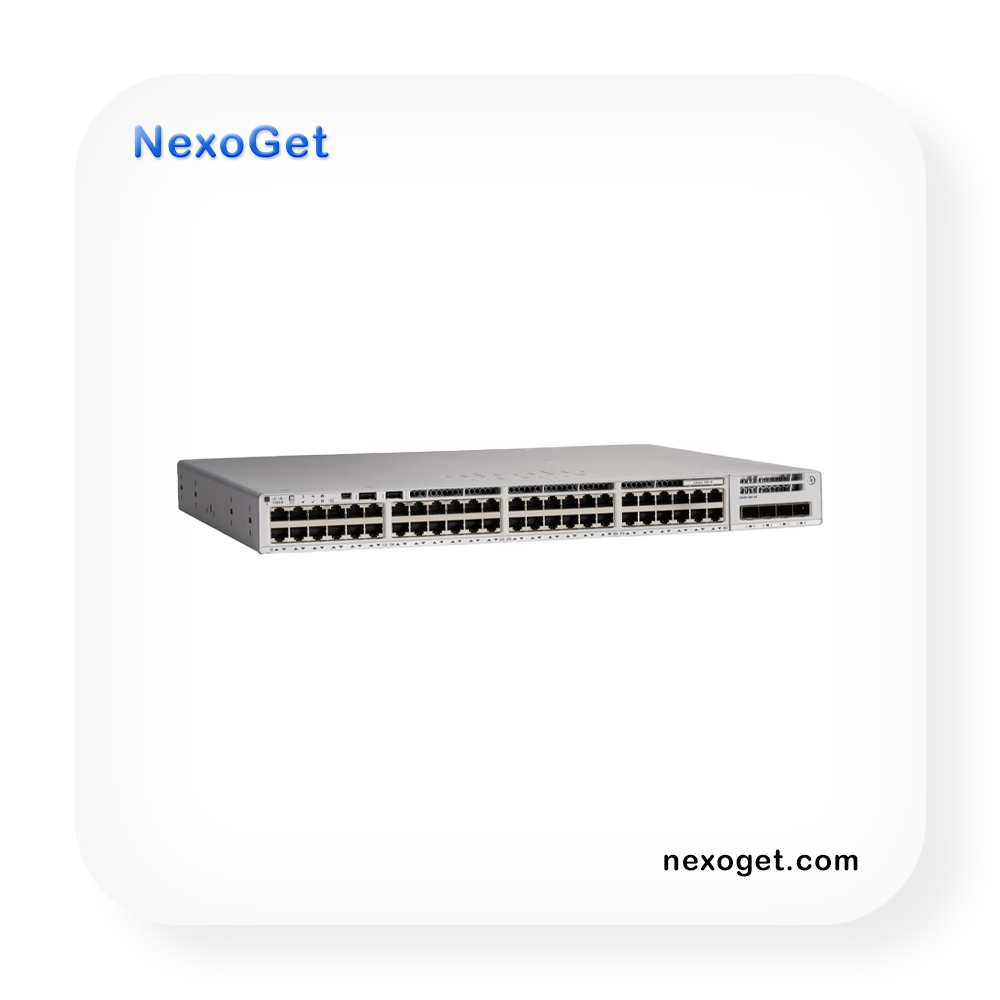

Cisco C9200-48T-E Switch
48 Full Gigabit Data Ports
Modular Uplinks & Dual PSU Support
StackWise-160 Technology
Advanced Security with MACsec-128
Network Essentials Feature Set
748,00
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
Cisco C9200-48T-E Switch
The Cisco C9200-48T-E Switch is a 48-port Gigabit Ethernet switch built for the “Mobile-First” and “Cloud-First” era. The “T” signifies Data-Only (no PoE), making it an efficient choice for high-density environments where devices like PCs and servers have their own power sources. Running on the Network Essentials (“E”) license, it brings the reliability of the Cisco Catalyst 9000 family to a broader market, offering industry-leading security and stacking capabilities.
Key Features of the C9200-48T-E:
This switch is powered by the UADP 2.0 Mini ASIC, allowing for professional-grade features and high-speed data processing at the access layer.
48 Gigabit Data Ports : Provides 48 ports of 10/100/1000 Ethernet, making it ideal for large offices or departments requiring extensive wired connectivity.
Modular Uplinks : The switch features a modular slot for field-replaceable uplink modules. This allows for flexible $1G$ or $10G$ fiber connections to your network core.
StackWise-160 Support : Allows you to stack up to 8 switches into a single logical unit. With 160 Gbps of stacking bandwidth, it provides a highly resilient and easy-to-manage infrastructure.
Field-Replaceable Resiliency : Supports dual redundant power supplies and modular fans. This modularity ensures your network stays up even if a power source fails.
Hardware-Based Security : Features advanced security protocols including AES-128 MACsec encryption, Secure Boot, and Trust Anchor technologies to protect against hardware tampering.
Efficient Layer 3 Routing : Includes foundational Layer 3 routing features such as Static Routing, RIP, and OSPF (routed access) specifically for branch deployments.
Applications and Ideal Use Cases
The C9200-48T-E is optimized for environments where port density is the top priority:
High-Density Workspaces : Perfect for corporate offices, call centers, and schools where dozens of desktop computers and printers need reliable, high-speed wired access.
Server Room Edge : Ideal for connecting a large number of rack-mounted servers or storage devices that do not require PoE.
Enterprise Modernization : The primary choice for businesses looking to upgrade 48-port 2960-X units to a more secure, programmable, and future-proof platform.
Resilient Branch Offices : Suited for locations that require maximum uptime through stacking and redundant power supply (RPS) support.
Technical Specifications at a Glance
| Feature | Specification |
| Total Ports | 48 x 10/100/1000 (Data Only) |
| Uplink Options | Modular (C9200-NM-4G or C9200-NM-4X) |
| Stacking Bandwidth | 160 Gbps (StackWise-160) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| RAM / Flash | 4 GB / 4 GB |
| Software License | Network Essentials |
| Brand |
Cisco |
|---|---|
| Version |
original |
| Width |
44.5 cm |
| Required mains voltage |
Alternating current 100-240 V (50 – 60 Hz) |
| Expansion slots |
1 (total)/ 1 (free) x expansion slot |
| Flash memory |
4 GB |
| Housing type |
Rack mountable |
| Device type |
Switch – 48 ports – L3 – managed – stackable |
| Service provided |
125 watts |
| Weight |
5 kg |
| Size of the MAC address table |
32,000 entries |
| Manufacturer |
Cisco Meraki |
| Height |
4.4 cm |
| Jumbo frame support |
9198 bytes |
| Capacity |
Virtual networks: 4 ,IPv4 entries in routing table: 4000 ,IPv6 entries in routing table: 2000 ,Flexible NetFlow entries: 16000 ,Packed buffer size: 6 MB ,VLAN IDs: 4096 ,Switched virtual interfaces (SVIs): 1000 |
| Perfomance |
Multi-bandwidth: 160 Gbps ,Switching bandwidth: 176 Gbps ,Forwarding rate: 261.9 Mpps |
| Features |
ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management In |
| Maximum storage temperature |
70 °C |
| Maximum supported number |
2 |
| Minimum storage temperature |
-40 °C |
| PoE Capability |
NoN PoE |
| Ports |
48 x 10/100/1000 |
| Port Count |
48 port |
| Product certifications |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Par |
| RAM |
4 GB |
| Management Type |
Fully Managed (Layer 2) |
| Redundant power supply |
Optional |
| Remote Administration Log |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Routing Protocol |
OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, Policy-Based Routing (PBR), RIPng, MSTP |
| Interfaces |
48 x 10/100/1000 Base-T RJ-45 ,1 x Network Stacking Device ,1 x Management (LAN) RJ-45 ,1 x Console RJ-45 |
| Power supply unit |
Internal power supply – hot-plug |
| Depth |
35 cm |
| Subtype |
Gigabit Ethernet |
| Encryption algorithm |
128-bit AES |
| Important product information |
The DNA license is not included and must be ordered separately. Please contact your sales representative. |
| Permissible humidity during storage |
5 – 90% (non-condensing) |
| Permissible humidity level in the workplace |
5 – 90% (non-condensing) |
| mtbf |
571,440 hours |
