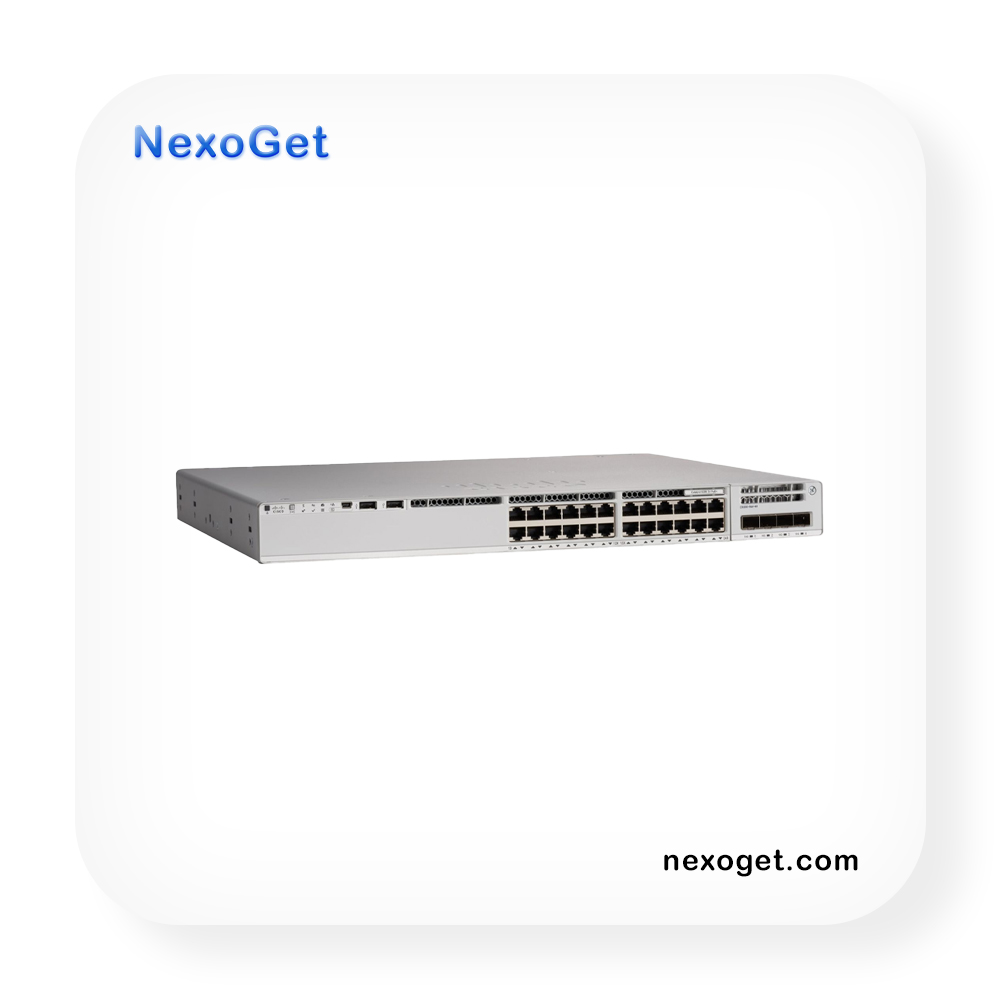

Cisco C9200-24P-E Switch

Cisco C9200-24P-E Switch

The Cisco C9200-24P-E Switch belongs to the Catalyst 9200 family, extending the power of intent-based networking to deployments of all sizes. The “P” in its name signifies Full PoE+ support, while the “E” indicates it runs the Network Essentials software license. This switch is engineered to provide enterprise-grade security, resiliency, and ease of management for branch offices and small-to-midsize corporate environments.

Key Features of the C9200-24P-E:

This switch utilizes the UADP 2.0 Mini architecture, offering a perfect balance between sophisticated features and cost-efficiency.

• 24 PoE+ Ports : All 24 ports support Power over Ethernet Plus (802.3at), providing up to 30W per port with a total PoE budget of 370W (expandable to 740W with a second power supply).

• Modular Uplinks : Offers flexibility with field-replaceable network modules. You can choose between $1G$ or $10G$ uplinks to suit your current and future backbone requirements.

• StackWise-160 Technology : Supports stacking of up to 8 switches, creating a single logical unit with 160 Gbps of stacking bandwidth for simplified management and high redundancy.

• Resilient Hardware : Features redundant, field-replaceable power supplies and fans. This ensures that the network remains operational even in the event of a hardware component failure.

• Advanced Security : Built-in hardware-anchored security including AES-128 MACsec encryption, Secure Boot, and Trustworthy Systems to protect against unauthorized access and cyber threats.

• Layer 3 Capabilities : Includes entry-level Layer 3 features such as Static Routing, OSPF, and RIP under the Network Essentials license.

Applications and Ideal Use Cases

The C9200-24P-E is the go-to solution for modernizing the edge of your network:

1. IP Telephony & Wireless Access Points : Ideal for powering Cisco IP phones (like the 8800 or 9800 series) and Wi-Fi 6 Access Points without needing extra power outlets.

2. Smart Building & IoT : Provides the necessary power and security for IP cameras, smart lighting, and door controllers.

3. Branch Modernization : A direct, high-performance upgrade for aging 2960-X infrastructure that requires more security and higher bandwidth.

4. Critical Power Needs : Perfect for environments that cannot afford downtime, thanks to its support for dual power supplies.

Technical Specifications at a Glance
