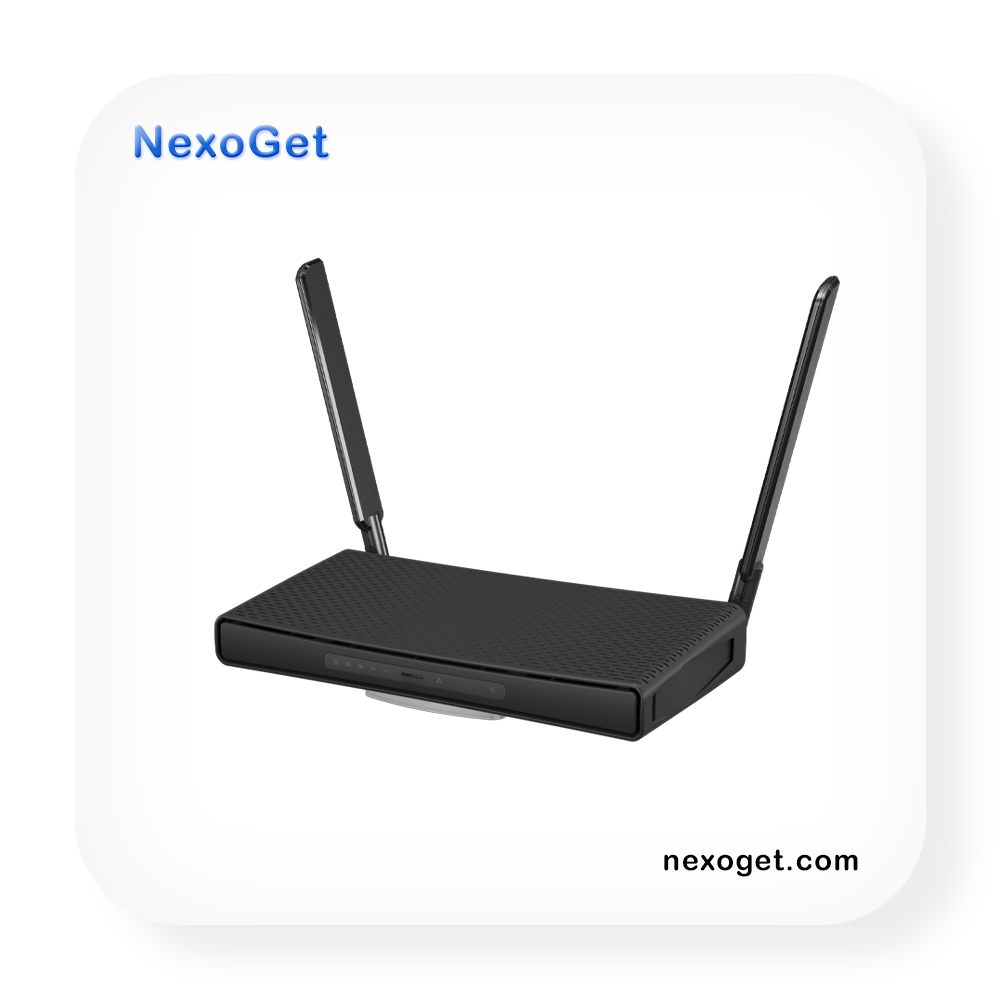

MikroTik hAP ax3
Wi-Fi 6 (AX1800) : Dual-band wireless with high-gain external antennas (5.5 dBi) providing up to 40% higher speeds in the 5 GHz band and up to 90% in 2.4 GHz compared to previous generations.
Ultimate Performance : Powered by a Quad-core 1.8 GHz ARM CPU and a full 1 GB of RAM, making it one of the most powerful home routers in its class for firewalling and encryption.
Ultra-Fast 2.5G Port : Includes one 2.5 Gigabit Ethernet port alongside four standard Gigabit ports, allowing you to take full advantage of high-speed fiber internet plans.
PoE Capabilities : Features PoE-in (to power the router) and PoE-out (on port 1) to power another device like an access point or IP camera.
USB 3.0 Port : A high-speed USB port suitable for adding external storage or a 4G/5G LTE backup modem.
RouterOS v7 (Level 6) : Comes with the highest license level, unlocking every professional feature MikroTik offers, from advanced BGP routing to extensive VPN tunnels (WireGuard, IPsec).
1 in stock
Chat directly with our B2B sales team via WhatsApp
The MikroTik hAP ax3 (C53UiG+5HaxD2HaxD-TC) is the most powerful AX-series home device from MikroTik, designed to be the ultimate flagship for home and small office users. It is the Wi-Fi 6 successor to the legendary hAP ac3, offering a massive boost in processing power, wireless throughput, and overall network performance.

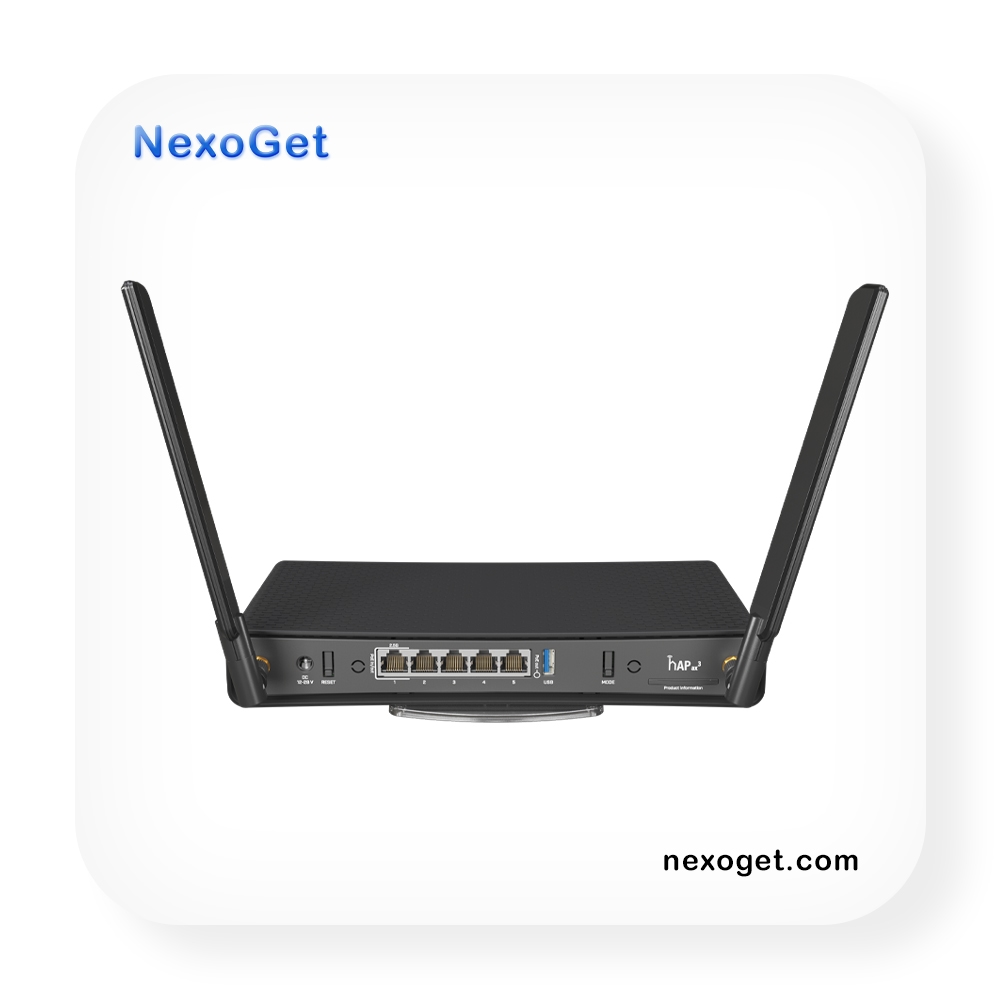

MikroTik hAP ax3 Router
The hAP ax3 is built for those who refuse to compromise. Featuring a high-performance quad-core ARM processor and high-gain external antennas, it is engineered to handle massive amounts of traffic, heavy encryption, and high-speed Wi-Fi 6 connectivity simultaneously. Its rugged, tower-style design ensures it stays cool even under the heaviest loads, making it a reliable core for any modern digital environment.
Key Features of the hAP ax3:
Next-Gen Wi-Fi 6 (AX1800): Provides up to 40% higher speeds in the 5 GHz band (up to 1200 Mbps) and up to 90% higher speeds in the 2.4 GHz band (up to 574 Mbps) compared to older standards.
2.5 Gigabit Ethernet: Features a dedicated 2.5G port, allowing you to fully utilize ultra-fast fiber internet connections or high-speed local NAS storage.
Powerful 1.8 GHz Quad-Core CPU: Equipped with a modern ARM 64-bit CPU and 1 GB of RAM, giving it the muscle to run Docker containers, advanced firewalls, and heavy VPN tunnels.
High-Gain External Antennas: Two powerful external antennas (up to 5.5 dBi) provide exceptional signal penetration and range, significantly reducing dead zones.
WPA3 Security: Supports the latest wireless security standard, ensuring your home network is protected against modern brute-force and decryption attacks.
USB 3.0 Support: Includes a high-speed USB 3.0 port for external storage, media sharing, or connecting a 4G/5G modem for cellular backup.
PoE-In & PoE-Out: Can be powered via PoE-In on the first port and can provide power to another device (like a camera or another AP) via PoE-Out on the last port.
Applications and Ideal Use Cases
The hAP ax3 is the “power user” choice for high-demand networks:
Ultimate Home Core: The perfect central router for modern smart homes with dozens of Wi-Fi 6 devices, 4K/8K streaming, and online gaming.
Professional Work-from-Home: Provides high-speed WireGuard or IPsec VPN performance, allowing for secure and lag-free remote access to corporate networks.
2.5G Networking: Ideal for users with multi-gigabit internet plans or those who need high-speed transfers between a PC and a local server.
Small Business Management: Robust enough to act as a complete network gateway, managing VLANs, guest hotspots, and complex security rules for a small office.
Technical Specifications at a Glance
| Feature | Specification |
| CPU | Quad-Core ARM 64-bit, 1.8 GHz (IPQ-6010) |
| RAM | 1 GB |
| Ethernet Ports | 4 x 1G, 1 x 2.5G |
| Wireless | Wi-Fi 6 (802.11ax) Dual-Band |
| Antenna Gain | 3.3 dBi (2.4 GHz) / 5.5 dBi (5 GHz) |
| USB Port | 1 x USB 3.0 type A |
| Operating System | RouterOS v7 (Level 6 License) |
| Brand |
MikroTik |
|---|---|
| Product code |
C53UiG+5HPaxD2HPaxD |
| Architecture |
ARM 64bit |
| CPU |
IPQ-6010 |
| CPU core count |
4 |
| CPU nominal frequency |
auto (864 – 1800) MHz |
| Switch chip model |
IPQ-6010 |
| RouterOS license |
6 |
| Operating System |
RouterOS v7 |
| Size of RAM |
1 GB |
| Storage size |
128 MB |
| Storage type |
NAND |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| IPsec hardware acceleration |
Yes |
| Wireless 2.4 GHz Max data rate |
574 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz |
3.3 |
| Wireless 2.4 GHz chip model |
QCN-5022 |
| Wireless 2.4 GHz generation |
Wi-Fi 6 |
| Wireless 5 GHz Max data rate |
1200 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz |
5.5 |
| Wireless 5 GHz chip model |
QCN-5052 |
| Wireless 5 GHz generation |
Wi-Fi 6 |
| WiFi speed |
AX1800 |
| 10/100/1000 Ethernet ports |
4 |
| Number of 1G Ethernet ports with PoE-out |
1 |
| Number of 2.5G Ethernet ports |
1 |
| Number of USB ports |
1 |
| USB Power Reset |
USB Power Reset |
| USB slot type |
USB 3.0 type A |
| Max USB current (A) |
1.5 |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-28 V |
| Max power consumption |
38 W |
| Max power consumption without attachments |
15 W |
| PoE in |
Passive PoE |
| Cooling type |
Passive |
| PoE in input Voltage |
18-28 V |
| PoE-out ports |
Ether 1 |
| PoE out |
Passive PoE |
| Low voltage PoE-Out current limit |
0.625 A |
| Max total out (A) |
0.625 A |
| Total output current |
0.625 |
| Total output power |
15 |
