MikroTik hEX lite

5 Fast Ethernet Ports : Features five 10/100 Mbps ports, making it a cost-effective choice for basic internet distribution and small wired networks.
Compact & Efficient : Consumes very little power (max 2W) and features a tiny footprint, making it easy to hide or wall-mount in tight spaces.
Surprising Processing Power : Despite its “lite” name, it packs an 850 MHz CPU and 64 MB of RAM, capable of handling complex firewall rules and basic VPN tunnels.
Flexible Powering : Can be powered via the standard DC jack or through Passive PoE-in on the first Ethernet port (6-30V).
Most Affordable MPLS Router : Renowned in the industry as one of the most budget-friendly devices capable of Multi-Protocol Label Switching (MPLS).
RouterOS Level 4 : Provides access to professional features like bandwidth shaping, user authentication (Hotspot), and advanced routing protocols (RIP, OSPF).

1 in stock

Shipping

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Buying Guide

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

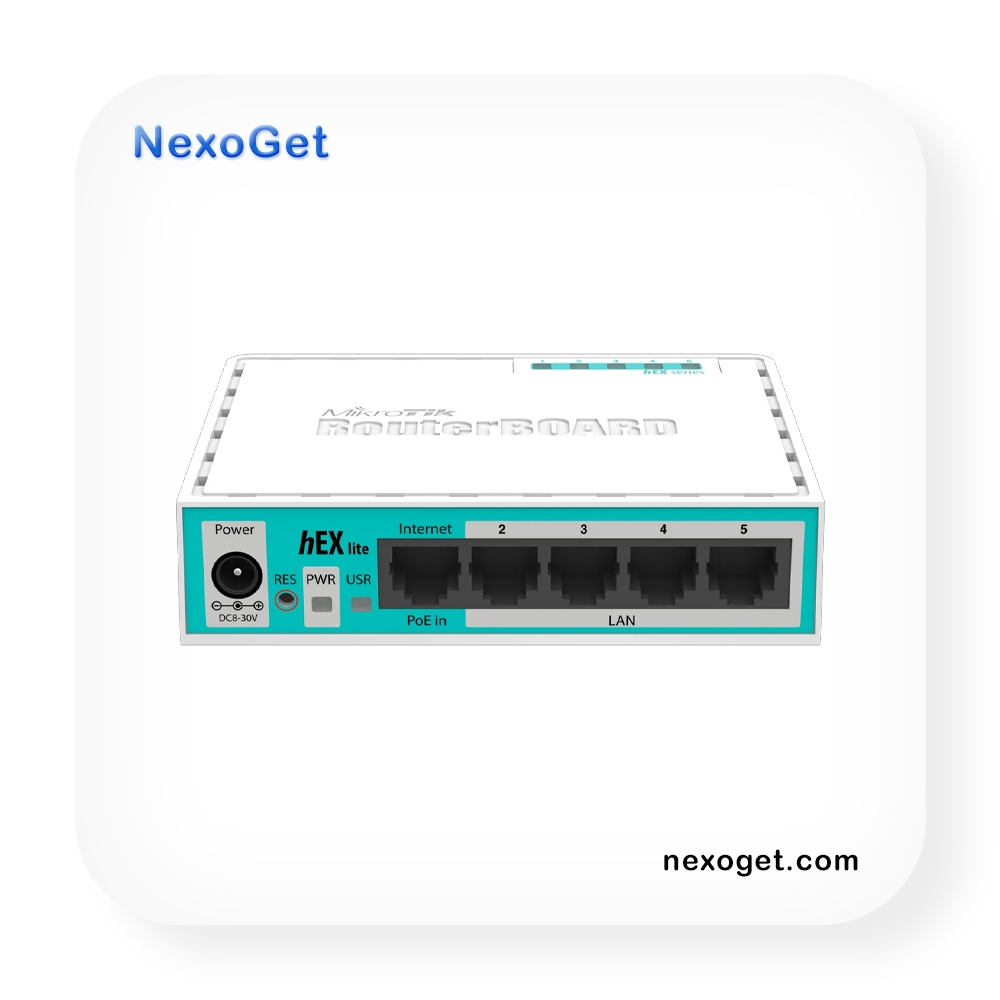

The MikroTik hEX lite (RB750r2) is a compact, five-port Ethernet router housed in a sleek plastic case. It is widely recognized as one of the most affordable and reliable entry-level wired routers on the market, offering the full power of RouterOS in a device that fits in the palm of your hand.

MikroTik hEX lite Router

The hEX lite is designed for environments where wireless connectivity is not required or is handled by separate access points. It is the perfect solution for managing small home networks, individual office branches, or acting as a dedicated firewall/VPN gateway for specific segments of a network. Despite its “lite” branding, it runs the same professional-grade software as MikroTik’s high-end carrier equipment.

Key Features of the hEX lite:

Five Fast Ethernet Ports: Features five 10/100 Mbps Ethernet ports, providing a reliable wired foundation for small network setups.
Compact & Discrete Design: Its tiny footprint and clean white aesthetic allow it to blend into any home or office environment without taking up space.
Full RouterOS Capabilities: Supports advanced features like bandwidth shaping (QoS), sophisticated firewall rules, NAT, and various VPN protocols (L2TP, PPTP, OpenVPN).
Powerful Management: Can be managed via the intuitive WebFig interface, the powerful WinBox tool, or a standard command-line interface (CLI).
MPLS Support: One of the most affordable devices on the market to support Multi-Protocol Label Switching (MPLS), making it a favorite for network engineering students.
Highly Energy Efficient: Consumes very little power (maximum 2W), making it an environmentally friendly and cost-effective choice for 24/7 operation.
Plug-and-Play Option: Comes pre-configured right out of the box, so you can simply plug in your internet cable and start browsing, with the option for deep customization later.

Applications and Ideal Use Cases

The hEX lite is the go-to solution for simple yet robust networking:

Small Home Networking: Ideal for users who want a professional-grade router to manage their internet connection and wired devices reliably.
Dedicated VPN Gateway: Can be used to create a secure encrypted tunnel between a remote office and a main headquarters.
Student & Lab Learning: An excellent, low-cost tool for students learning the fundamentals of networking, routing, and the MikroTik ecosystem.
Bandwidth Management: Perfect for small shops or cafes that need to limit user speeds or prioritize certain types of traffic (like VoIP) over others.

Technical Specifications at a Glance

Feature	Specification
CPU	Single-Core 850 MHz (QCA9533)
RAM	64 MB
Ethernet Ports	5 x 10/100 Mbps
Storage	16 MB Flash
Operating System	RouterOS (Level 4 License)
Max Power Consumption	2W
Dimensions	113 x 89 x 28 mm

Brand	MikroTik
Product code	RB750r2
Architecture	MIPSBE
CPU	QCA9533
CPU core count	1
CPU nominal frequency	850 MHz
Switch chip model	QCA9533
Dimensions	113x89x28mm. Weight without packaging and cables: 129g
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	6-30 V
Max power consumption	2 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	6-30 V
10/100 Ethernet ports	5
