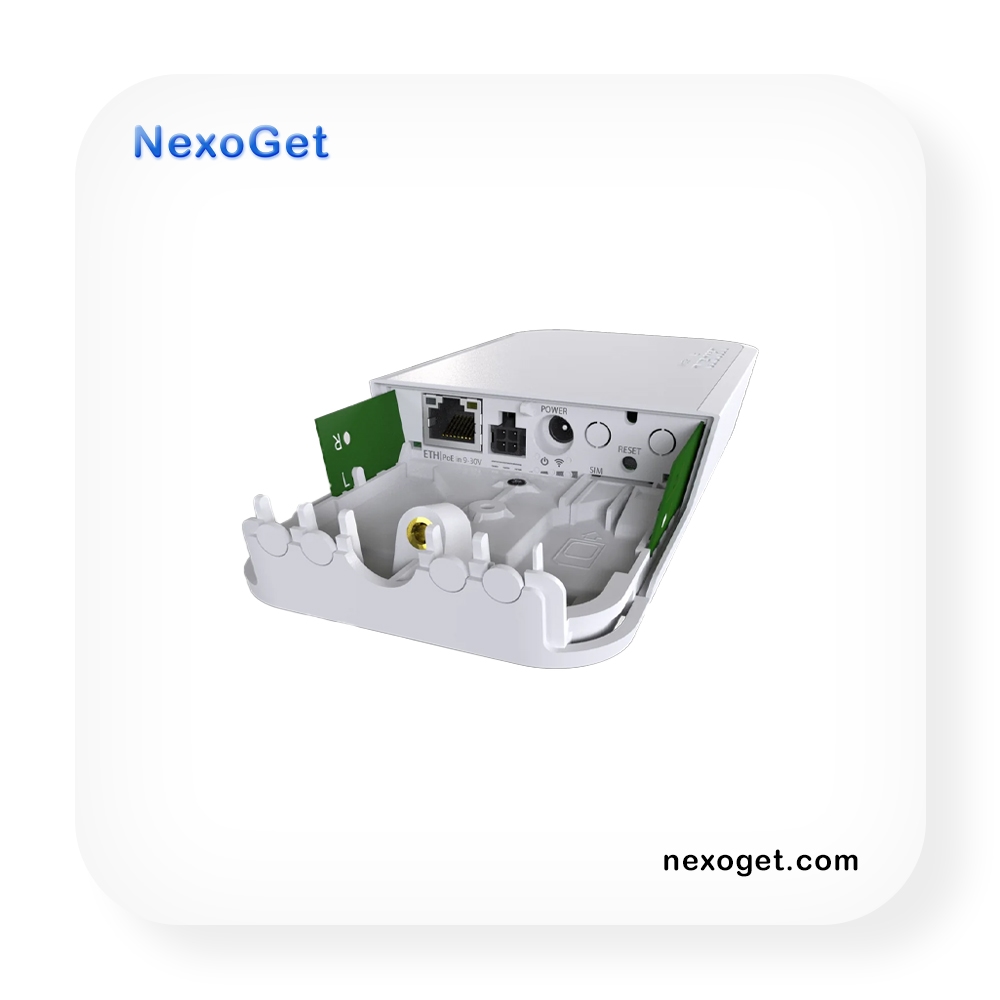

MikroTik wAP LTE kit
-
Integrated LTE Connectivity : Built-in Category 4 modem offering speeds up to 150 Mbps downlink and 50 Mbps uplink, supporting 2G, 3G, and 4G (LTE) networks.
-
2.4 GHz Wi-Fi (802.11b/g/n) : Provides local wireless access for phones, laptops, and IoT devices with dual-chain antennas for solid coverage.
-
Weatherproof Enclosure : Durable, compact design (IP54 rated) that can be mounted outdoors on walls, ceilings, or poles, operating in temperatures from -40°C to +60°C.
-
Flexible Powering Options : Supports three different power sources: Passive PoE-in, a standard DC jack, and a 4-pin Automotive connector (ideal for cars, buses, or trains).
-
10/100 Ethernet Port : Includes one Ethernet port for connecting a wired device or for providing power via PoE.
-
Expandable LTE : Features a miniPCI-e slot with the modem pre-installed, allowing for future upgrades or switching modems if needed.
1 in stock
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
The MikroTik wAP LTE kit (RBwAPR-2G-5HnD&R11e-LTE) is a weatherproof, compact wireless access point with a built-in cellular modem that supports 2G, 3G, and 4G (LTE) connectivity. It is specifically designed to provide internet access in remote locations, moving vehicles, or as a reliable outdoor backup link.
MikroTik wAP LTE kit
The wAP LTE kit is a specialized member of the “wireless Access Point” (wAP) family, built to withstand harsh environments while delivering steady connectivity. It comes with a pre-installed LTE card connected to internal antennas, but it also features a miniPCIe slot, giving you the flexibility to upgrade the modem or use your own. Its discrete, rugged design makes it perfect for mounting on walls, ceilings, poles, or even the dashboard of a bus or train.
Key Features of the wAP LTE kit:
-
Built-in LTE Modem: Supports International LTE bands 1, 2, 3, 7, 8, 20, 38, and 40, providing download speeds up to 150 Mbps and upload speeds up to 50 Mbps.
-
2.4 GHz Wireless: Features a built-in 802.11b/g/n dual-chain wireless interface, allowing you to share your LTE connection with smartphones and laptops.
-
Weatherproof Design: Housed in a rugged, UV-resistant enclosure that can operate in temperatures ranging from -40°C to +60°C, making it ideal for outdoor installation.
-
Versatile Powering Options: Supports three different power sources: 9-30V PoE-in via the Ethernet port, a standard DC jack, and a 4-pin automotive connector for vehicles.
-
MiniPCIe Slot: Provides an internal slot for the LTE card, allowing users to swap the modem if different frequency bands or technologies are needed.
-
Desktop or Wall Mount: Includes a specialized stand for upright desktop placement and a secure mounting bracket for walls or ceilings with a hidden cable entry.
-
RouterOS Powered: Runs the full version of RouterOS, offering professional features like firewalling, bandwidth management, and secure VPN tunnels.
Applications and Ideal Use Cases
The wAP LTE kit is the ultimate solution for connectivity on the go or in the wild:
-
Remote Site Connectivity: The perfect choice for construction sites, summer houses, or rural farms where traditional wired internet is unavailable.
-
Mobile Internet for Vehicles: Ideal for providing guest Wi-Fi on buses, taxis, or RVs, using the automotive power connector for a stable 12V/24V supply.
-
Outdoor Wi-Fi Extension: Can be mounted on the exterior of a building to provide Wi-Fi in gardens or parking lots while using LTE as the primary or backup backhaul.
-
M2M & IoT Gateway: Reliable enough to connect outdoor sensors, security cameras, or industrial equipment to the cloud via the cellular network.
Technical Specifications at a Glance
| Feature | Specification |
| CPU | Single-Core 650 MHz (QCA9531) |
| RAM | 64 MB |
| Ethernet Ports | 1 x 10/100 Mbps |
| LTE Category | 4 (150Mbps Down / 50Mbps Up) |
| SIM Slots | 1 (Modem included) |
| Wireless | 2.4 GHz Dual-Chain |
| Power Input | PoE-in, DC Jack, 4-pin Automotive |
| Operating System | RouterOS (Level 4) |
| Product code |
RBwAPR-2nD&R11e-LTE |
|---|---|
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
185 x 85 x 30 mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-40°C to 50°C |
| Number of DC inputs |
3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage |
9-30 V |
| Automotive input Voltage |
9-30 V |
| Max power consumption |
8 W |
| PoE in |
Passive PoE |
| Cooling type |
Passive |
| PoE in input Voltage |
9-30 V |
| 2G Category |
Class12 |
| 2G bands |
2 (1900MHz) |
| 3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands |
1 (2100MHz) |
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands |
1 (2100MHz) |
| LTE TDD bands |
38 (2600MHz) |
| TAC |
35565409 |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz Number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| 10/100 Ethernet ports |
1 |
| Number of SIM slots |
1 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
