MikroTik CSS610-8P-2S+IN Switch
-
8 Gigabit PoE+ Ports : All eight RJ45 ports support 802.3af/at PoE+ output, delivering power and data through a single cable for cameras, APs, and phones.
-
Dual 10G SFP+ Ports : Features two 10-Gigabit SFP+ cages for high-speed fiber uplinks to servers or core switches, ensuring no bandwidth bottlenecks.
-
SwOS Operating System : Runs SwitchOS, a lightweight, web-based operating system designed specifically for switching. It makes configuring VLANs, port security, and bandwidth limiting simple and intuitive.
-
Versatile Design : The compact desktop enclosure comes with rackmount ears, allowing it to fit on a desk, a shelf, or inside a standard rack.
-
Non-Blocking Throughput : Boasts a total non-blocking throughput of 28 Gbps and a switching capacity of 56 Gbps, ensuring full wire-speed performance on all ports.
-
Reliable Powering : Includes a high-capacity power supply to support multiple PoE devices, with a maximum total PoE budget of up to 140W.
1 in stock
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

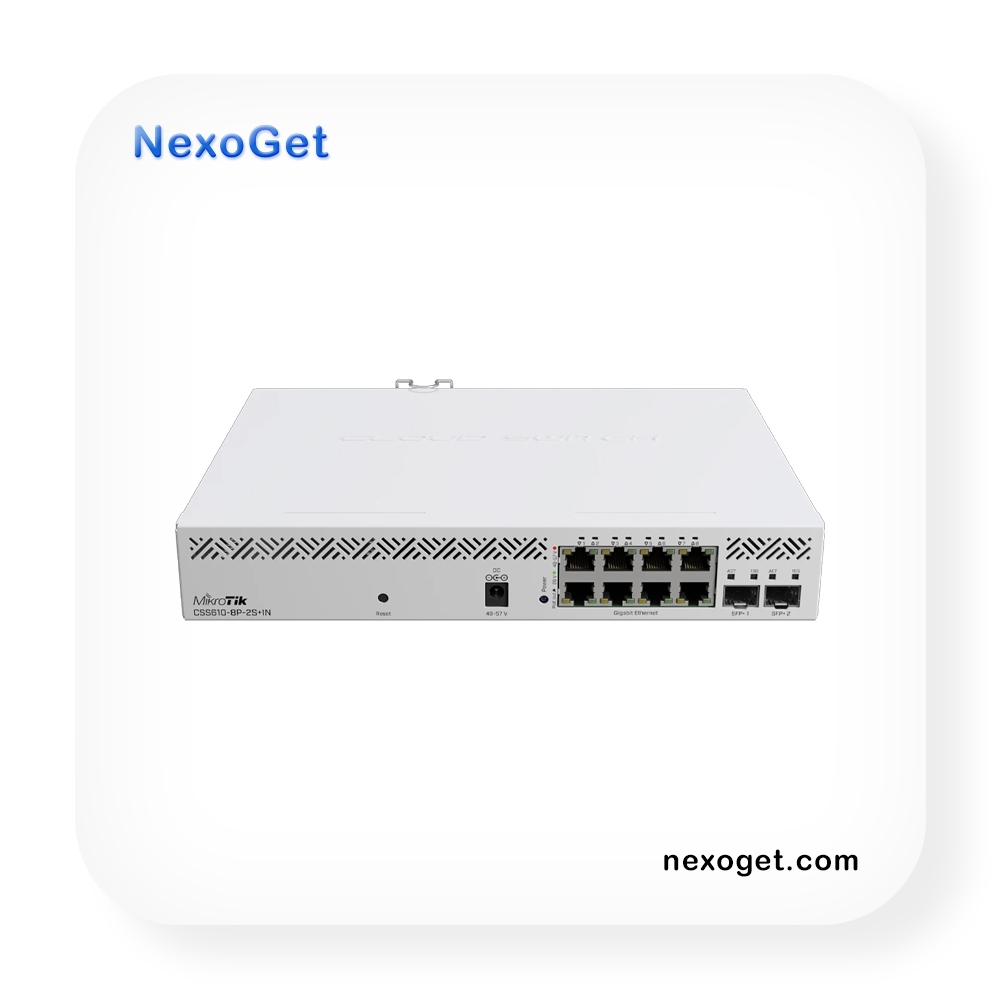

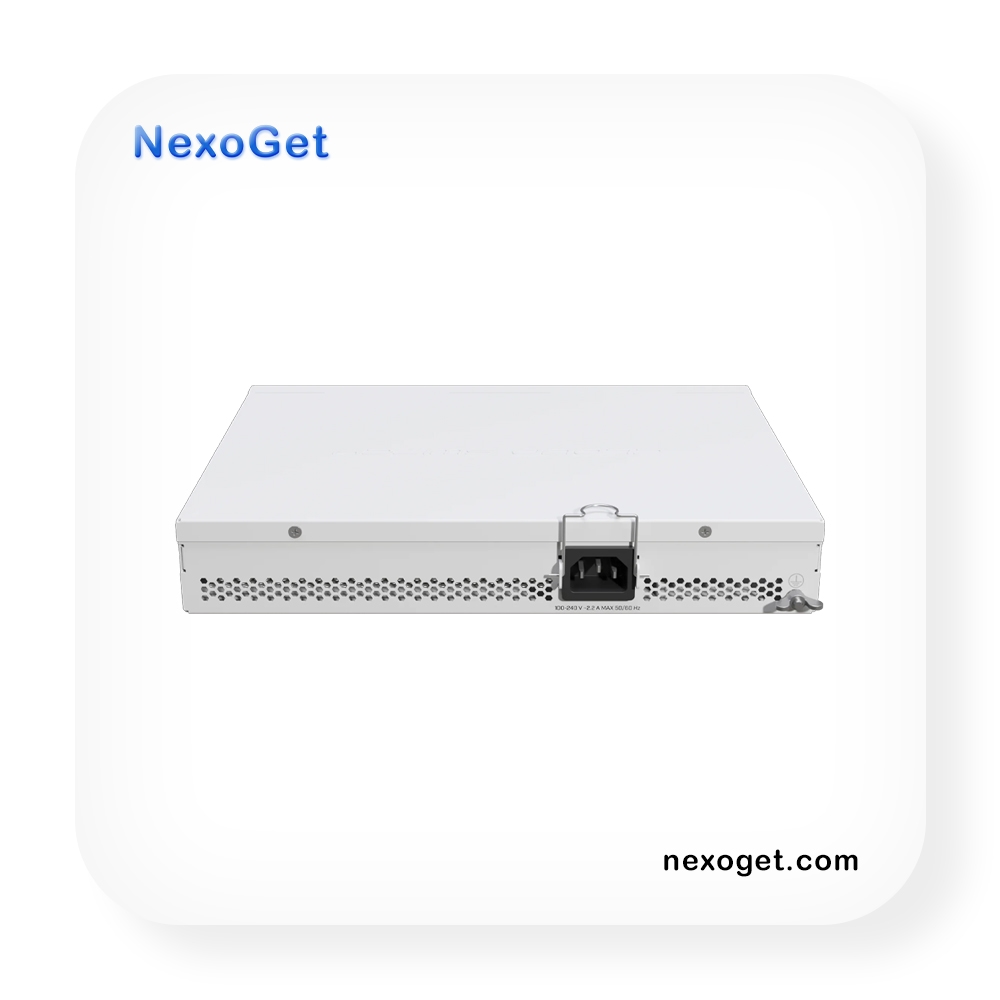

MikroTik CSS610-8P-2S+IN Switch
The MikroTik CSS610-8P-2S+IN Switch belongs to the Cloud Smart Switch family, bringing the efficiency of hardware-based switching to deployments of all sizes. It runs exclusively on MikroTik’s SwOS (SwitchOS), a specialized operating system designed specifically for high-speed switching performance. This switch is engineered to provide robust Layer 2 management, high resiliency, and incredible ease of use for small-to-midsize corporate environments, surveillance setups, and advanced home labs.
Key Features of the CSS610-8P-2S+IN:
-
8 Gigabit PoE+ Ports : All 8 ports support 802.3af/at PoE+ output, providing up to 30W per port with a generous total PoE budget for cameras, APs, and VoIP phones.
-
Dual 10G SFP+ Uplinks : Features two $10G$ SFP+ cages, allowing you to future-proof your backbone with high-bandwidth fiber connections to servers or core switches.
-
SwOS Operating System : A lightweight, web-based management interface that simplifies complex tasks like VLAN management, Port Isolation, Port Mirroring, and Bandwidth Limiting.
-
Non-Blocking Throughput : Boasts a total non-blocking throughput of 28 Gbps and a switching capacity of 56 Gbps, ensuring no bottlenecks even under heavy local traffic.
-
Compact & Versatile Build : Its small form factor allows for desktop placement or shelf mounting, while included rackmount ears allow it to fit perfectly into standard racks.
-
Silent & Efficient : Designed for reliability and low power consumption, maintaining high performance without the need for loud cooling fans in typical office environments.
-
Flexible Powering : Can be powered via a DC jack or Passive PoE-in, ensuring redundant power options for mission-critical edge deployments.
Applications and Ideal Use Cases
The CSS610-8P-2S+IN is the go-to solution for cost-effectively modernizing the edge of your network :
-
IP Surveillance Systems : Ideal for powering and connecting high-resolution IP cameras while sending the aggregate video stream over a $10G$ fiber link.
-
Wi-Fi 6 Access Points : Provides the necessary PoE+ power and high-speed backhaul required by modern high-density wireless access points.
-
SOHO & Small Office : Acts as a central hub for small offices that need a mix of standard Ethernet, PoE power, and high-speed fiber uplinks.
-
Media Production & Studios : Silent operation and $10G$ speeds make it perfect for studios requiring fast access to shared storage without ambient noise.
Technical Specifications at a Glance
| Feature | Specification |
| Total Ports | 8 x 10/100/1000 (PoE+) + 2 x 10G SFP+ |
| PoE Budget | Up to 140W (Total) |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| Operating System | SwOS (Lightweight Web GUI) |
| Power Consumption | Max 12W (excluding PoE out) |
| Management | Managed Layer 2 |
| Brand |
MikroTik |
|---|---|
| Product code |
CSS610-8P-2S+IN |
| Management Type |
Smart Managed |
| Switch chip model |
88E6193X |
| Dimensions |
272x208x44mm |
| Operating System |
SwitchOS Lite |
| Storage size |
64 KB |
| Storage type |
FLASH |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| Number of AC inputs |
1 |
| AC input range |
100-240 |
| Number of DC inputs |
1 (DC jack) |
| DC jack input Voltage |
48-57 V |
| Number of PSU slots |
1 |
| Frequency (Hz) |
50-60 |
| Max power consumption |
162 W |
| Max power consumption without attachments |
12 W |
| Cooling type |
Passive |
| PoE-out ports |
Ether1-Ether8 |
| PoE out |
802.3af/at |
| Low voltage PoE-Out current limit |
1000 mA |
| High voltage PoE-Out current limit |
625 mA |
| Total output power |
140 |
| PoE Capability |
PoE+ |
| 10/100/1000 Ethernet ports |
8 |
| Port Count |
8 port |
| Number of 1G Ethernet ports with PoE-out |
8 |
| SFP+ ports |
2 |
| CPU temperature monitor |
Yes |
| Voltage Monitor |
Yes |
