MikroTik hAP ac lite TC

Dual-Band Wi-Fi 5 : Supports concurrent 2.4 GHz (up to 300 Mbps) and 5 GHz (up to 433 Mbps) wireless standards for flexible device connectivity.
5 Fast Ethernet Ports : Equipped with five 10/100 Mbps ports, providing stable wired connections for home or small office setups.
Passive PoE-Out : Port 5 features PoE output functionality, allowing you to power another passive PoE-capable device (like a camera or another AP) directly from the router.
USB 2.0 Support : Includes a full-size USB port designed for 3G/4G modems, providing an easy path for mobile internet backup or failover.
Universal Tower Case : The specialized enclosure allows for vertical or horizontal placement, and a wall-mounting kit is included for maximum flexibility.
RouterOS Level 4 : Powered by MikroTik’s professional operating system, offering advanced firewalling, bandwidth management, and VPN support.

1 in stock

Shipping

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Buying Guide

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

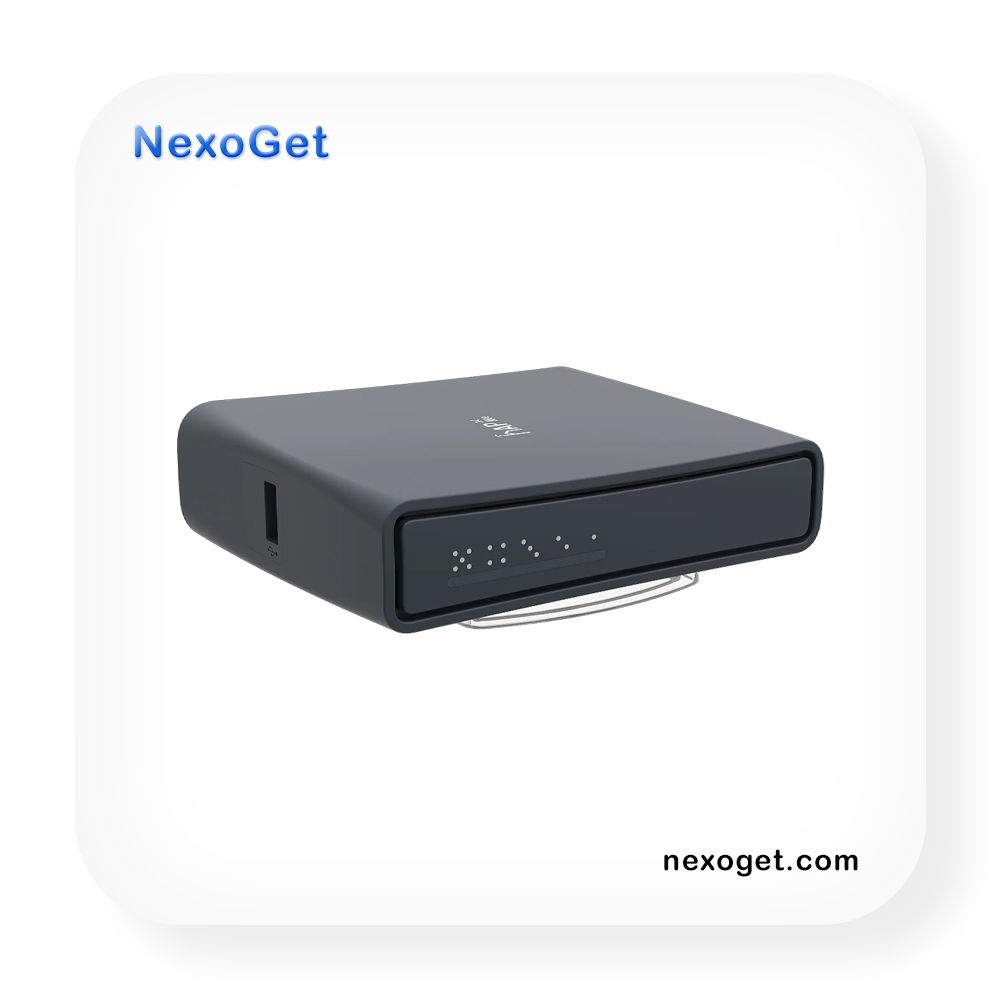

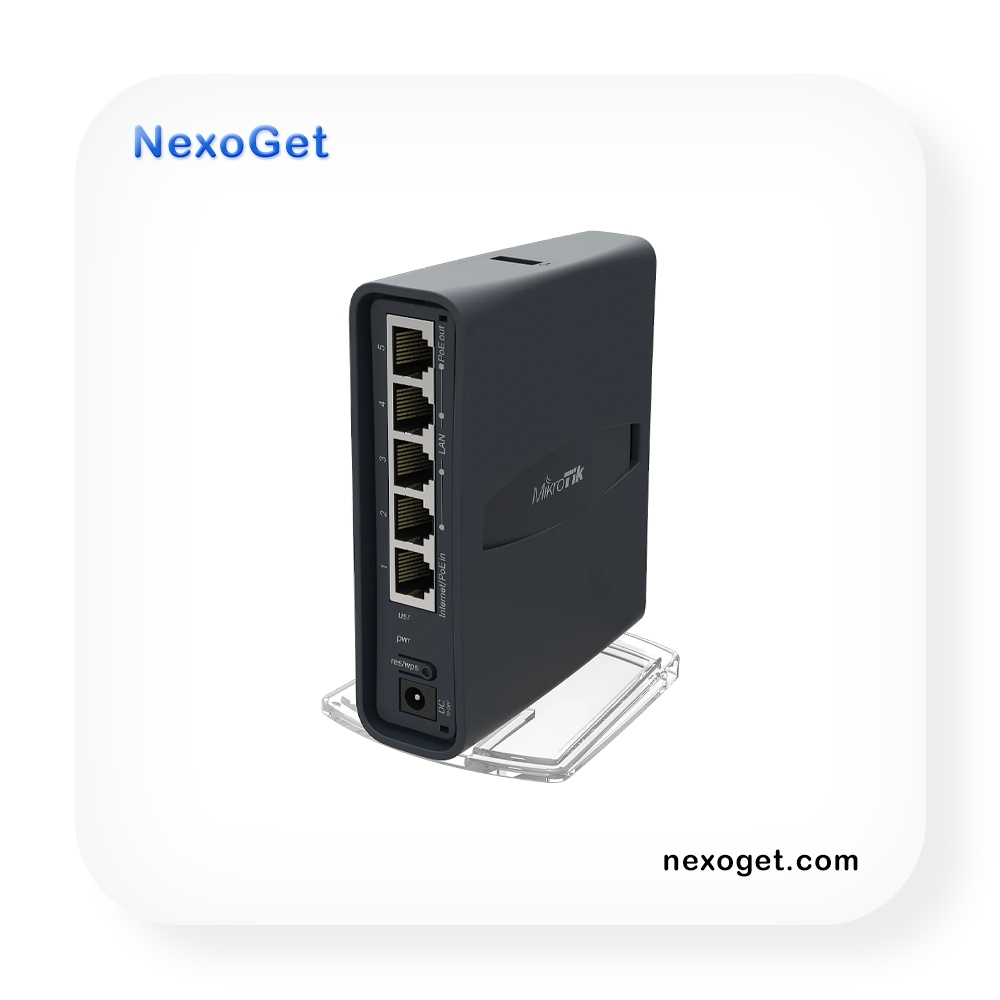

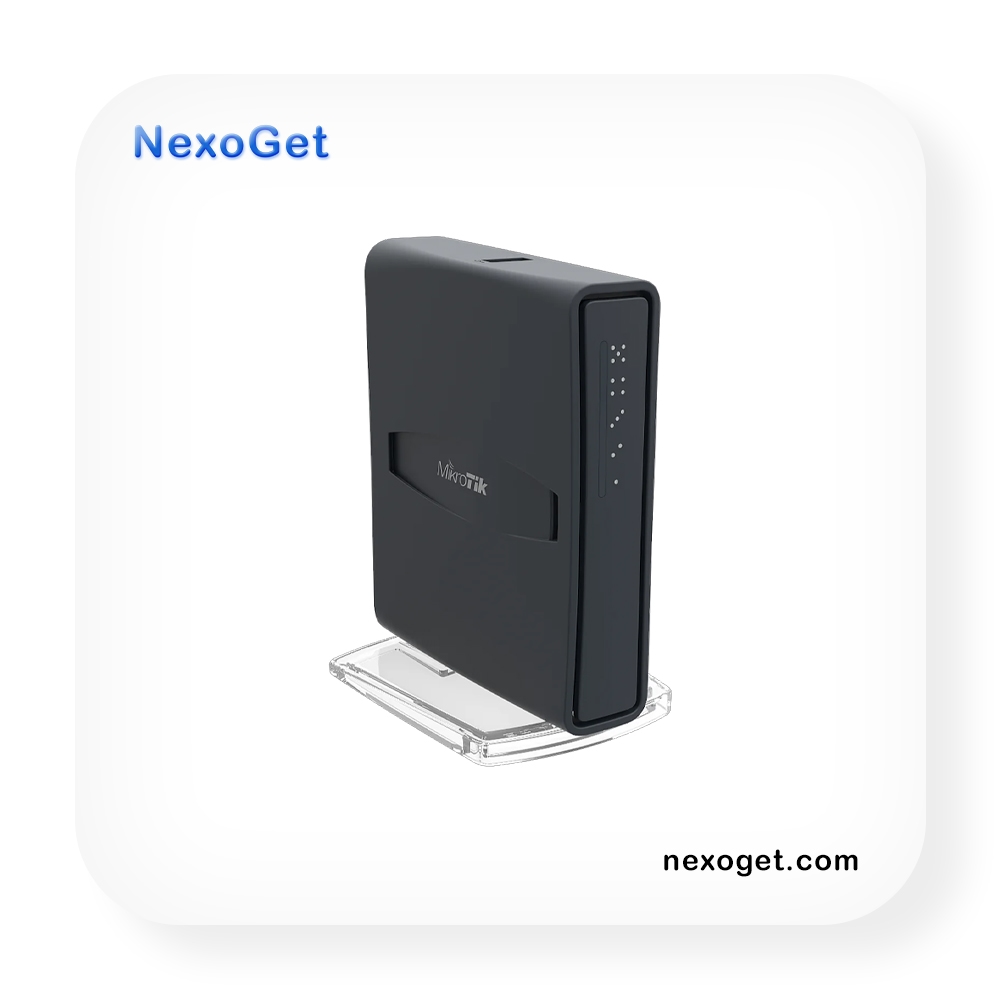

The MikroTik hAP ac lite TC (RB952Ui-5ac2nD-TC) is a compact, dual-concurrent access point that provides simultaneous Wi-Fi coverage for both 2.4 GHz and 5 GHz frequencies. It is designed as an affordable and space-saving solution for homes or small office environments where the reliability of RouterOS is needed in a stylish, vertical form factor.

MikroTik hAP ac lite TC Router

The hAP ac lite TC is the “Tower Case” version of the classic hAP ac lite. While it features the same internal hardware, its vertical design is optimized for desktop placement, allowing for better heat dissipation and a smaller footprint. This router is the perfect entry point for those looking to move beyond basic ISP-provided equipment to a professional-grade networking device that supports both legacy and modern wireless devices.

Key Features of the hAP ac lite TC:

Dual-Band Wireless: Provides simultaneous 2.4 GHz (802.11b/g/n) and 5 GHz (802.11a/n/ac) coverage. This allows older gadgets to connect to 2.4 GHz while newer, high-speed devices utilize the interference-free 5 GHz band.

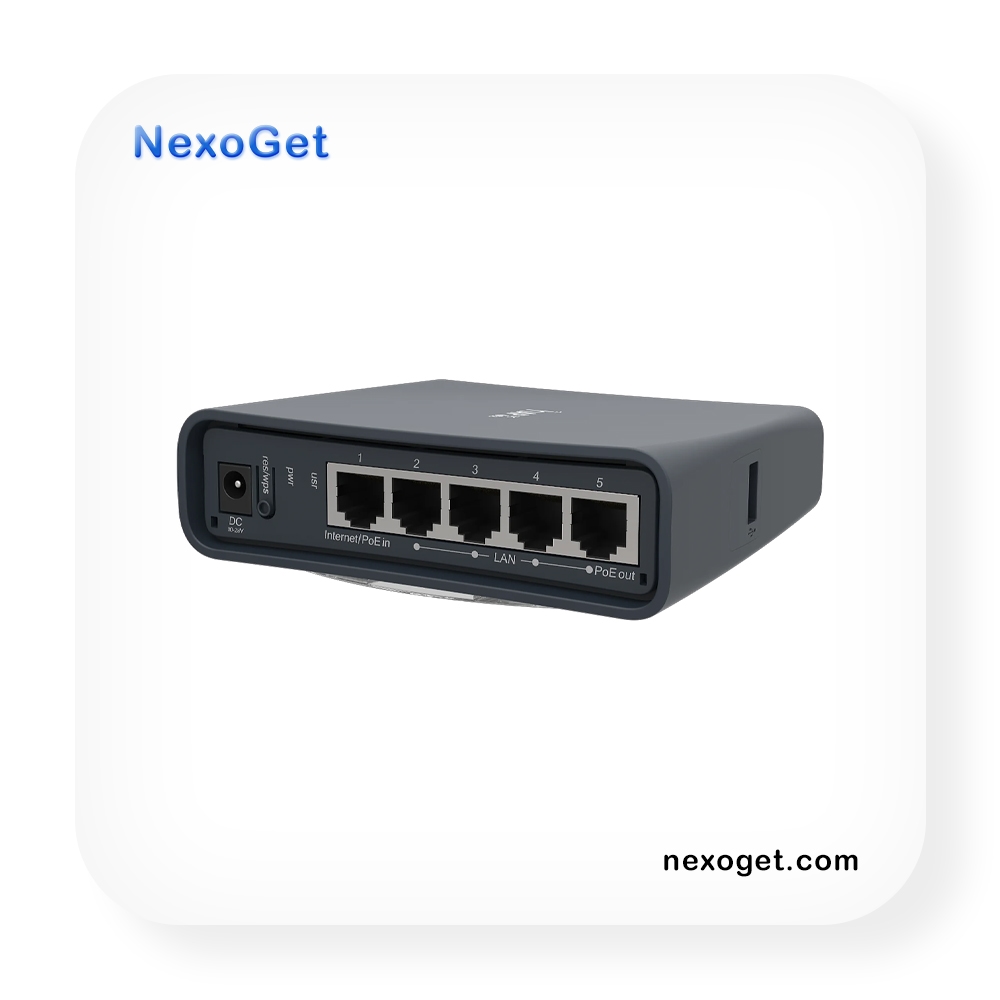

Five Fast Ethernet Ports: Features five 10/100 Mbps ports for stable wired connections to computers, smart TVs, or game consoles.
PoE-Out Capability: Port 5 can power other PoE-capable devices (like a MikroTik SXT or a camera) with the same voltage as applied to the unit, reducing cable clutter.
Versatile Tower Case: The “TC” design allows the unit to stand vertically on a desk or be mounted horizontally. It also includes a kit for secure wall mounting.
Full RouterOS Features: Despite its size, it runs the full RouterOS (Level 4), offering professional tools like bandwidth management (QoS), firewalls, user access control, and VPN support.
USB Port for 4G/LTE: Includes a full-size USB 2.0 port, which can be used to connect a cellular modem for backup internet connectivity.
Energy Efficient: A very low-power device with a maximum consumption of only 8W, making it cost-effective for 24/7 operation.

Applications and Ideal Use Cases

The hAP ac lite TC is an excellent choice for everyday networking:

Standard Home Networking: Ideal for apartments or small houses where a reliable dual-band signal is needed for smartphones and laptops.
Small Office/Cafe Wi-Fi: Perfect for setting up a secure guest Wi-Fi portal (Hotspot) alongside a private office network.
Dedicated VPN Node: Can be used as a low-cost, dedicated hardware device to maintain a secure encrypted tunnel between locations.
Network Extension: Its compact size and PoE-out make it a great choice for extending a network to a balcony or another room.

Technical Specifications at a Glance

Feature	Specification
CPU	Single-Core 650 MHz (QCA9531)
RAM	64 MB
Ethernet Ports	5 x 10/100 Mbps
Wireless	2.4 GHz (Dual-chain) / 5 GHz (Single-chain)
Antenna Gain	2 dBi
USB Port	1 x USB 2.0 Type A
PoE Support	Passive PoE-In (Port 1) & PoE-Out (Port 5)
Operating System	RouterOS (Level 4 License)

Brand	MikroTik
Product code	RB952Ui-5ac2nD-TC
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	QCA9531
Dimensions	34 x 119 x 98mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-30°C to 70°C
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz Number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	433 Mbit/s
Wireless 5 GHz Number of chains	1
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	2
Wireless 5 GHz chip model	QCA9887
Wireless 5 GHz generation	Wi-Fi 5
WiFi speed	AC750
10/100 Ethernet ports	5
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-28 V
Max power consumption	20 W
Max power consumption without attachments	8 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	10-28 V
PoE-out ports	Ether5
PoE out	Passive PoE
Low voltage PoE-Out current limit	500 mA
Max total out (A)	500 mA
