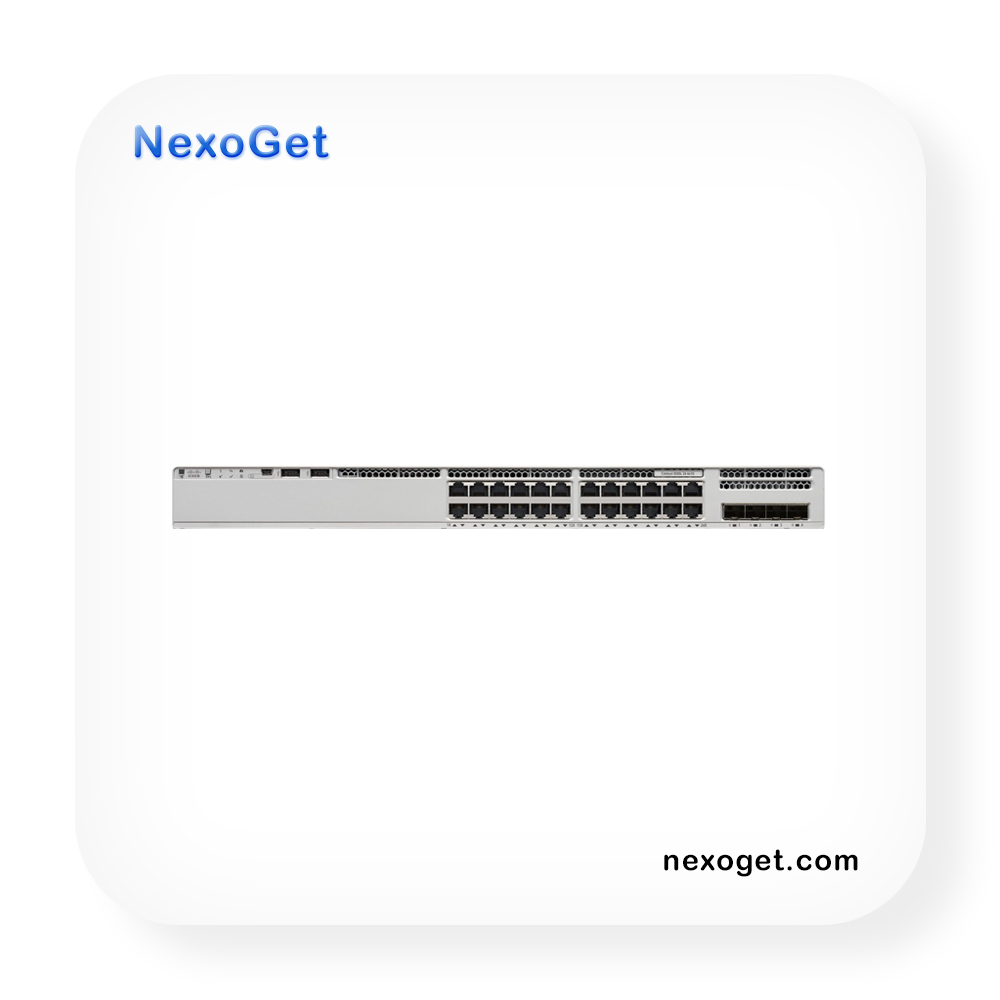

Cisco C9200L-24T-4G-E Switch

24 Gigabit Data Ports : 24 ports of 10/100/1000 Ethernet dedicated to high-speed data transfer for PCs, servers, and printers.
Fixed 4x 1G SFP Uplinks : Integrated Gigabit fiber uplinks provide reliable, long-distance backbone connectivity without occupying any user ports.
StackWise-80 Support : Enables stacking of up to 8 switches into a single logical unit with 80 Gbps of stacking bandwidth.
Network Essentials L3 Feature Set : Provides foundational Layer 3 routing (Static routing, OSPF, RIP) and basic SD-Access capabilities.
Hardware-Anchored Security : Features Cisco Trust Anchor, Secure Boot, and AES-128 MACsec encryption to protect network integrity.
Fixed & Efficient Design : Comes with fixed power supplies and fans, offering a streamlined footprint and lower power consumption for non-PoE environments.

1 in stock

Shipping

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Buying Guide

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Cisco C9200L-24T-4G-E Switch

The Cisco C9200L-24T-4G-E Switch is a high-performance, fixed-uplink enterprise switch engineered to bring the advantages of intent-based networking to standard campus and branch environments. As a core member of the Catalyst 9200 Series, this “Lite” model provides a sophisticated balance of security and reliability for organizations that require robust data connectivity without the complexity or cost of modular uplink hardware.

Key Features of the Cisco C9200L-24T-4G-E:

This switch is built to simplify IT operations while maintaining the high standards of the Cisco Catalyst family through several integrated hardware and software advantages:

Fixed Uplink Architecture: Equipped with four dedicated 1G SFP uplink ports, this model ensures consistent high-speed connectivity to the network core without requiring additional expansion modules.
StackWise-80 Technology: Supports hardware-based stacking with a bandwidth of up to 80 Gbps, allowing up to eight switches to be managed as a single logical entity for improved resiliency and simplified administration.
Enterprise-Grade Security: Features advanced security capabilities including AES-128 MACsec encryption, policy-based segmentation, and Trustworthy Solutions to protect the integrity of your hardware and data traffic.
Layer 3 Routing Support: Under the Network Essentials license, the switch supports fundamental routing protocols such as OSPF, EIGRP, and RIP, providing flexibility for sophisticated network designs.
Resilient Power and Cooling: Designed with support for dual redundant, hot-swappable power supplies and field-replaceable fans to minimize downtime in mission-critical environments.

Applications and Ideal Use Cases

The C9200L-24T-4G-E is specifically tailored to meet the needs of modern, decentralized digital infrastructures.

Mid-Market Branch Offices: An excellent choice for organizations that need secure, high-speed wired connectivity for workstations and servers in environments where Power over Ethernet (PoE) is not a requirement.
Access Layer Deployments: Serves as a reliable edge device for corporate networks, providing 24 ports of Gigabit Ethernet to support high-density local device connectivity.
Infrastructure Modernization: Provides a clear upgrade path for small to medium enterprises looking to replace aging Catalyst 2960-L or 2960-X series hardware with a more secure and cloud-ready platform.

Technical Specifications at a Glance

Feature	Specification
Device Type	Switch – 24 ports – L3 – stackable
Total 10/100/1000 Ports	24 Data-only ports
Uplink Configuration	4 x 1G Fixed SFP uplinks
Switching Capacity	56 Gbps
Forwarding Rate	83.33 Mpps
Stacking Bandwidth	80 Gbps (StackWise-80)
RAM / Flash Memory	2 GB / 4 GB
MAC Address Table Size	16,000 entries
Software License	Network Essentials

Brand	Cisco
Capacity	Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS h
Management Type	Fully Managed (Layer 2)
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 1
Depth	28.8 cm
Device Type	Switch – 24 ports – L3 – stackable
Enclosure Type	Rack-mountable
Features	Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of S
Flash Memory	4 GB
Height	4.4 cm
Humidity Range Operating	5 – 90% (non-condensing)
Humidity Range Storage	5 – 90% (non-condensing)
Important product information	The DNA licence is not included in the scope of delivery and must be ordered separately. Please contact your sales manager.
Interfaces	24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
Jumbo Frame Support	9198 bytes
MAC Address Table Size	16000 entries
MTBF	531,030 hours
Manufacturer	Cisco Meraki
Max Storage Temperature	70 °C
Max Supported Qty	2
Min Storage Temperature	-40 °C
Performance	80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
PoE Capability	NoN PoE
Ports	24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Port Count	24 port
Power Device	Internal power supply – hot-plug
Power Redundancy	Optional
RAM	2 GB
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Routing Protocol	OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Subtype	Gigabit Ethernet
Version	original
Voltage Required	AC 100-240 V (50 – 60 Hz)
Weight	4.35 kg
Width	44.5 cm
