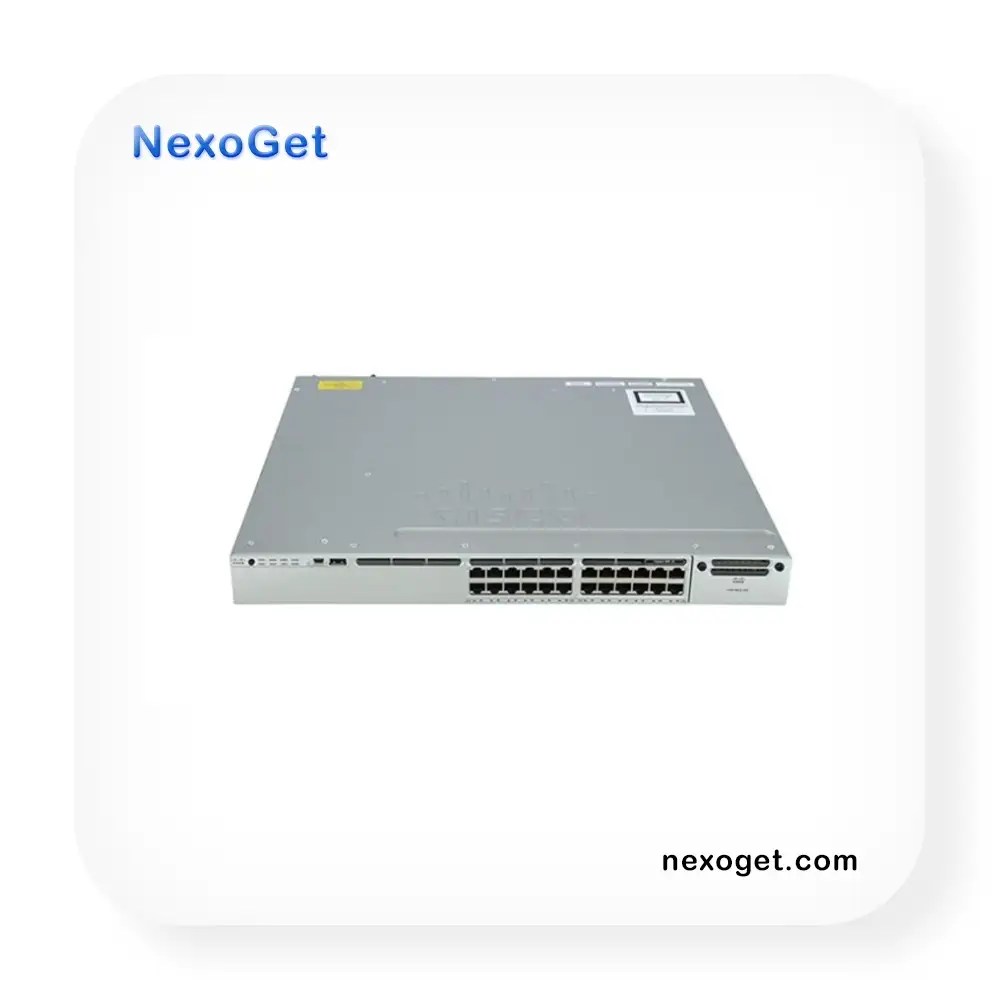

Cisco C9300-24H Switch

The Cisco Catalyst C9300-24H Switch is an enterprise-class access-layer networking solution designed for organizations that require dependable Ethernet connectivity, advanced Power over Ethernet capabilities, and a scalable foundation for modern business networks. As part of the Cisco Catalyst 9300 Series, the C9300-24H combines 24 Gigabit Ethernet access ports, Cisco UPOE+ technology, modular uplink flexibility, and enterprise networking capabilities in a rack-mountable platform. It is suitable for corporate offices, enterprise campuses, educational institutions, healthcare facilities, and other professional environments where wired infrastructure must support a growing number of connected devices.

Businesses deploying wireless access points, IP phones, surveillance cameras, collaboration endpoints, and other powered network devices can benefit from the C9300-24H’s high-power PoE capabilities. Its modular uplink architecture also allows network teams to select compatible uplink connectivity according to their bandwidth requirements and infrastructure design. For organizations planning a network refresh, the Cisco Catalyst C9300-24H enterprise switch offers a practical combination of port density, power delivery, network management capabilities, and room for future expansion.

Whether you are upgrading an existing access network or building a new enterprise infrastructure, the C9300-24H can help consolidate device connectivity and power delivery into a manageable switching platform. Explore the related Cisco Catalyst C9300-24T, Cisco Catalyst C9300-24P, and Cisco Catalyst C9300-48T to compare alternative port and power configurations available for different networking requirements.

Cisco Catalyst C9300-24H Switch: Key Features and Benefits

The Cisco Catalyst C9300-24H is designed for enterprise access networks where reliable connectivity and substantial power delivery are important purchasing considerations. Its 24-port configuration supports a range of business devices, while its UPOE+ capabilities help reduce the need for separate power adapters for compatible endpoints. The platform’s modular uplink design provides additional flexibility when connecting access switches to distribution or core network infrastructure.

24 Gigabit Ethernet Ports for Enterprise Connectivity

The C9300-24H provides 24 copper Ethernet access ports operating at 10/100/1000 Mbps. These interfaces can connect compatible computers, printers, IP phones, wireless access points, cameras, and other Ethernet-enabled devices. Gigabit access connectivity remains suitable for many enterprise environments where users need stable network access for business applications, collaboration services, file transfers, and cloud-based workflows.

For organizations requiring a larger number of wired connections, the Cisco Catalyst C9300-48P and Cisco Catalyst C9300-48U are useful comparison options. These 48-port models can be considered when planning higher-density access layers, subject to the specific PoE requirements and hardware configuration.

Cisco UPOE+ with Up to 90W per Port

One of the principal advantages of the Cisco Catalyst C9300-24H is its support for Cisco Universal Power over Ethernet Plus (UPOE+). Compatible ports can deliver up to 90 watts of power, subject to the switch configuration, power supply capacity, and available PoE budget. This high-power capability makes the switch suitable for supported endpoints that require more power than conventional PoE or PoE+ devices.

Potential applications include compatible wireless access points, IP telephony equipment, collaboration devices, and other enterprise endpoints. Before connecting powered devices, network administrators should verify each endpoint’s power requirements, PoE standard, and maximum consumption. The total available power is also affected by the installed power supplies and the number of devices drawing power simultaneously.

Organizations that require a different PoE configuration can also evaluate the Cisco Catalyst C9300-24P, which supports PoE+, or the Cisco Catalyst C9300-24U, which supports Cisco UPOE. Comparing these models helps buyers identify the most appropriate power delivery capability for their connected equipment.

Modular Uplink Flexibility

The Cisco Catalyst C9300-24H uses a modular uplink architecture, allowing compatible network modules to be selected according to the required upstream connectivity. Depending on the installed module and the network design, uplink options can support different combinations of Ethernet and fiber connectivity. This flexibility is useful for organizations that need to integrate access switches into existing distribution networks or plan for future infrastructure upgrades.

Compatible module selection is essential. Network administrators should verify the supported uplink modules, software requirements, and hardware compatibility for the exact switch SKU before ordering additional components. For organizations reviewing modular networking options, the Cisco C9200-NM-2Y, Cisco C9200-NM-2Q, Cisco C9200-NM-4G, and Cisco C9200-NM-4X illustrate the types of modular uplink products used across the broader Catalyst portfolio. These C9200 modules are not interchangeable with C9300 modules; compatibility must be checked for the specific platform.

Technical Specifications of the Cisco C9300-24H

The following table summarizes the main characteristics of the Cisco Catalyst C9300-24H. Exact specifications can vary with the hardware revision, installed power supplies, selected uplink module, software license, and regional product configuration.

Understanding the 90W PoE Capability

The maximum per-port power rating should not be confused with the total PoE budget of the entire switch. Although the C9300-24H supports up to 90W per compatible port, the amount of power available across all ports depends on the installed power supply configuration and the switch’s total power budget. If numerous high-power devices will operate simultaneously, calculate the expected consumption before deployment.

For example, a network connecting high-power wireless access points, collaboration endpoints, and IP phones may need a different power allocation from an office network primarily serving computers and printers. Reviewing the power requirements of every connected device helps prevent an unsuitable hardware selection and supports a more predictable deployment.

Enterprise Applications and Deployment Scenarios

Corporate Offices and Business Campuses

The Cisco Catalyst C9300-24H can serve as an access switch in corporate offices where reliable wired connectivity and centralized network administration are important. It can connect employee workstations, IP phones, printers, and compatible wireless infrastructure while providing a structured point of access to the wider enterprise network.

For organizations with larger access-layer requirements, the Cisco Catalyst C9300-48P and Cisco Catalyst C9300-48U provide 48-port alternatives. The appropriate model depends on the number of connected devices, PoE requirements, rack capacity, and anticipated growth.

Wireless Infrastructure and High-Power Endpoints

Enterprise wireless networks increasingly depend on suitable wired infrastructure to connect access points and transport traffic toward the rest of the network. The C9300-24H’s UPOE+ support can help power compatible devices directly through Ethernet, reducing the need for separate local power adapters where supported.

However, the C9300-24H should not be mistaken for a multigigabit access switch. Organizations that specifically require 2.5Gbps, 5Gbps, or 10Gbps copper connectivity should evaluate a model designed for multigigabit access, such as the Cisco Catalyst C9300-24UX, and confirm the exact port capabilities before purchasing.

Healthcare, Education, and Shared Facilities

Healthcare organizations, universities, schools, and shared commercial facilities may need to connect many types of Ethernet-enabled equipment through a consistent access infrastructure. The C9300-24H can be considered for deployments requiring managed switching, enterprise segmentation capabilities, and high-power Ethernet support for compatible endpoints.

In these environments, network design should account for traffic separation, access control, device authentication, redundancy, and the operational requirements of critical systems. Switch selection should form part of a wider architecture review rather than being based on port count alone.

Network Management, Security, and Scalability

The Catalyst 9300 Series is designed for enterprise networks that require managed switching capabilities and integration with broader Cisco networking infrastructure. Depending on the installed software, license, and configuration, the C9300-24H can support network segmentation, access control, traffic prioritization, monitoring, and other enterprise networking functions.

Network Segmentation and Traffic Management

Virtual LANs (VLANs) can be used to separate departments, device types, or business services logically. For example, an organization might separate employee computers, voice endpoints, guest access, and infrastructure management traffic into distinct network segments. Appropriate VLAN configuration, access control lists, and routing policies can help administrators implement a more organized network design.

Quality of Service (QoS) policies can also help prioritize selected traffic types where supported and correctly configured. This is especially relevant when a network carries voice, video conferencing, business applications, and general data traffic simultaneously. The resulting performance depends on the complete network path, traffic conditions, and configuration of connected devices.

Enterprise Security Considerations

Network security requires more than selecting a managed switch. Administrators should apply appropriate access policies, keep software updated according to the vendor’s guidance, restrict management access, and monitor the network for unexpected activity. Supported security features and licensing should be verified for the specific C9300-24H configuration.

For more information about the role of switching in a network environment, visit Nexoget’s guide: What Is a Cisco Switch?. This resource can help buyers understand how Ethernet switches connect devices and fit into a larger networking architecture.

Cisco Catalyst C9300-24H vs. Other Catalyst Switches

Choosing between Catalyst models requires consideration of port density, Ethernet speed, PoE capability, uplink design, and total deployment cost. The C9300-24H is particularly relevant when an organization needs 24 Gigabit Ethernet access ports and high-power UPOE+ support. Other models may be more suitable when the priority is a greater number of ports, multigigabit connectivity, or a different budget.

Important: This is a high-level model comparison, not a complete bill-of-materials specification. Actual port configurations, available power, software features, and licensing depend on the exact SKU and installed components. Always consult the relevant Cisco documentation before finalizing a purchase.

When Should You Choose the C9300-24H?

Consider the C9300-24H when your network needs 24 Gigabit Ethernet access ports, compatible endpoints may require up to 90W of PoE power, and modular uplinks are important to your design. It can be a suitable choice for organizations that need higher-power endpoint support without requiring multigigabit speeds on the access ports.

When Should You Consider the C9300X Series?

The Cisco Catalyst 9300X family is worth evaluating when your network design requires different performance, uplink, or high-density connectivity options. Depending on the model, the 9300X family can provide capabilities aimed at demanding enterprise deployments. Review the Cisco Catalyst C9300X-48HX, Cisco Catalyst C9300X-48TX, Cisco Catalyst C9300X-48HXN, and Cisco Catalyst C9300X-24HX for alternative configurations.

Additional models include the Cisco Catalyst C9300X-12Y-E and Cisco Catalyst C9300X-24Y-E. These should be assessed according to their specific interface configurations and intended role rather than treated as direct replacements for the C9300-24H.

Comparing the Catalyst 9300 with Other Cisco Switching Platforms

Not every organization needs the same switching capabilities. Some networks need enterprise access features and high-power PoE, while others prioritize straightforward connectivity, lower port density, or a different uplink configuration. Comparing the Catalyst 9300 with other Cisco families can help establish whether the selected switch matches the network’s actual requirements.

Catalyst 9300 vs. Catalyst 9200

The Catalyst 9200 family offers a range of enterprise access switches for organizations with different performance, port, and budget requirements. Buyers comparing these platforms can review the Cisco Catalyst C9200-24T-E, Cisco Catalyst C9200-24P-E, Cisco Catalyst C9200-48T-E, and Cisco Catalyst C9200-48P-E.

For deployments requiring fixed uplinks and a specific combination of port density and PoE, the Cisco Catalyst C9200L-24P-4X-E, Cisco Catalyst C9200L-48P-4X-E, and Cisco Catalyst C9200L-48T-4X-E are additional comparison points. Their capabilities differ from the C9300-24H, so the choice should be based on required features and supported configurations.

Catalyst 9300 vs. Catalyst 9500

The Catalyst 9300 family is commonly used for enterprise access-layer switching, whereas Catalyst 9500 models are designed for different high-performance campus roles, including distribution and core deployments. If you are planning a larger campus architecture, compare the C9300-24H with the Cisco Catalyst C9500-48Y4C-E to understand how access and higher-level switching requirements differ.

Alternative Cisco Small Business Switching Options

Smaller offices and less demanding deployments may not need all the capabilities of a Catalyst 9300 enterprise switch. The Cisco Catalyst C1300-24P-4G, Cisco Catalyst C1300-24T-4X, and Cisco Catalyst C1200-24P-4X provide additional products to evaluate when designing a smaller or differently scaled network.

These alternatives should not be considered equivalent in performance, licensing, management, or feature depth. A careful requirements assessment will help determine whether an enterprise Catalyst platform or another switching family is more appropriate.

Installation and Network Planning Recommendations

Before installing the Cisco Catalyst C9300-24H, confirm that the rack, power infrastructure, cooling, cabling, and upstream network connections meet the deployment requirements. The switch should be installed in an environment that follows the manufacturer’s guidance for temperature, airflow, power, and physical security.

Pre-Deployment Checklist

• Confirm the exact C9300-24H product SKU and software license.
• Verify that the switch includes the intended power supply configuration.
• Calculate the expected PoE load for all connected powered devices.
• Check the compatibility of the required modular uplink hardware.
• Verify that Ethernet cabling meets the requirements of the connected endpoints.
• Plan VLANs, management access, authentication, and security policies.
• Confirm upstream bandwidth and redundancy requirements.
• Review firmware and software requirements before deployment.
• Document the final port assignments and connected-device inventory.

Power Budget and Redundancy Planning

For networks with many powered devices, calculate the total expected power consumption rather than relying only on the maximum power rating of a single port. Consider peak demand, future endpoint additions, and any redundancy requirements. Where uninterrupted operation is important, review the supported power supply and redundancy options for the precise hardware configuration.

Uplink and Cabling Verification

Confirm the selected uplink module and required transceivers or cables before installation. The correct choice depends on the upstream switch, supported interface speeds, link distance, and whether copper or fiber connectivity is required. Using compatible components and documenting the connection design can simplify installation and ongoing maintenance.

Why Buy Networking Equipment from Nexoget?

Nexoget provides an online catalog for buyers researching networking hardware and comparing products for enterprise and business deployments. When evaluating the Cisco Catalyst C9300-24H, customers should confirm the exact product configuration, included accessories, availability, warranty terms, and delivery conditions before placing an order.

Visit the Nexoget Shop to explore the product catalog or return to the Nexoget homepage for additional information. If you need help identifying a suitable networking product, the Contact Us page provides a way to contact the store.

Before purchasing, review the Warranty Policy, Refund and Returns Policy, and Payment Policy. These pages can help you understand the store’s published terms and the conditions that may apply to your order.

Explore Related Networking Products

If you are comparing switching options for an enterprise deployment, you can also review the Cisco C9300-48P, Cisco C9300-48U, Cisco C9300-48UN, Cisco C9300-48UXM, and Cisco C9300-24UB.

These related models have different port, power, and interface capabilities. Compare their official technical specifications against the requirements of your network before choosing a configuration.

Frequently Asked Questions About the Cisco Catalyst C9300-24H

How many ports does the Cisco C9300-24H have?

The Cisco Catalyst C9300-24H has 24 Gigabit Ethernet copper access ports. It also supports modular uplinks, with the available uplink interfaces depending on the compatible module installed in the switch.

Does the C9300-24H support PoE?

Yes. The C9300-24H supports Cisco UPOE+, with up to 90W per supported access port. Actual available power depends on the hardware configuration, installed power supplies, and the total PoE load.

Is the C9300-24H a multigigabit switch?

No. The C9300-24H is a 24-port Gigabit Ethernet model. Buyers requiring multigigabit copper access should evaluate models such as the Cisco Catalyst C9300-24UX and verify the supported speeds for the intended deployment.

Can the C9300-24H power wireless access points?

It can power compatible access points that meet its supported PoE standards and available power budget. Check the power requirements of the exact access point model before connecting it to the switch.

What is the difference between the C9300-24H and the C9300-24P?

The main difference is their power delivery capability. The C9300-24H supports UPOE+ at up to 90W per supported port, whereas the C9300-24P is a PoE+ model designed for compatible devices with lower power requirements. The best choice depends on the connected endpoints and the total network power budget.

Can the C9300-24H be used in an enterprise campus network?

Yes. The C9300-24H is designed for enterprise switching deployments and can be used as an access-layer switch in a campus architecture. Its suitability depends on the required features, uplink capacity, software licensing, redundancy design, and overall network topology.

What should I verify before buying the Cisco C9300-24H?

Confirm the full product SKU, licensing, power supply configuration, compatible uplink module, product condition, warranty, and availability. If the switch will power multiple endpoints, calculate the expected PoE consumption and verify that the available power budget meets the deployment requirements.

Conclusion: Is the Cisco Catalyst C9300-24H Right for Your Network?

The Cisco Catalyst C9300-24H Switch is a strong candidate for enterprise access networks that require 24 Gigabit Ethernet ports, Cisco UPOE+ power delivery, and modular uplink flexibility. Its ability to deliver up to 90W to supported devices makes it especially relevant for deployments involving high-power network endpoints, provided the selected configuration offers sufficient total power.

For organizations prioritizing standard PoE+, the C9300-24P may be worth considering. For higher-power UPOE deployments without the same 90W requirement, compare the C9300-24U. For multigigabit access, evaluate the C9300-24UX or relevant C9300X models. Comparing these alternatives helps ensure that your purchase aligns with both current operational requirements and future network plans.

Explore the Nexoget networking catalog to compare available Cisco switches and related hardware. Before ordering the Cisco Catalyst C9300-24H, verify the exact specifications, included components, licensing, warranty terms, and product availability for the configuration you intend to deploy.
